IC43316 Rotary Ironer – Gas or Electric Commercial Ironer

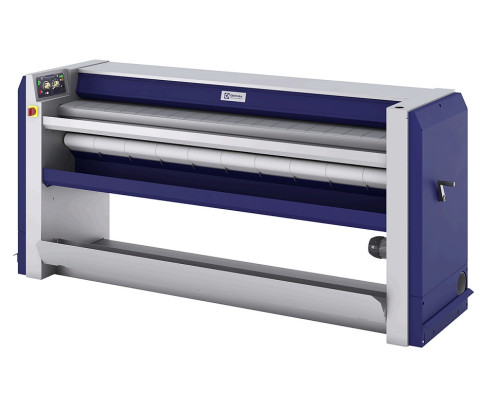

IC63316 Rotary Ironer – Commercial Gas or Electric Flatwork Ironer
The IC63316 Rotary Ironer is a professional commercial ironing solution designed for busy on-premise laundries, hotels, care homes and hospitality environments. Built for reliability and productivity, this return-feed ironer delivers a high-quality finish while remaining simple and comfortable for operators to use throughout the working day.
With its compact return-feed design, the IC63316 can be installed close to a wall, making it ideal for laundry rooms where space efficiency is essential. Its robust construction, stainless steel cylinder and Nomex ironing components ensure consistent performance and long operational life.
Key Features
- Simple control panel: Intuitive controls allow quick operator training and easy daily use.
- Ergonomic working height: Designed for comfortable operation during long ironing shifts.
- Gas or electric versions available: Choose the heating option that best suits your site services.
- Finger guard protection: Improves operator safety at the feeding point.
- Nomex padded pressure roll: Provides consistent contact pressure for superior ironing results.
- Nomex ironing belts: Heavy-duty belts capable of withstanding temperatures above 220°C.
- Stainless steel cylinder: Prevents corrosion and extends machine lifespan.
- Return-feed design: Allows installation close to a wall, saving valuable laundry space.
- Foldable feeding tray: Supports large flatwork items and prevents linen touching the floor.
IC63316 vs IC63320 – Key Technical Specifications
| Specification | IC63316 | IC63320 |
|---|---|---|
| Performance | ||
| Capacity (max. water evaporation) | 19.5 l/h | 24.5 l/h |
| Ironing Speed | 0.5 – 5.5 m/min | 0.5 – 5.5 m/min |
| Cylinder | ||
| Cylinder Diameter | 325 mm | 325 mm |
| Cylinder Length | 1650 mm | 2065 mm |
| Heating | ||
| Electric Heating Power | 18 kW | 22.5 kW |
| Gas Heating | 68,240 Btu/h (20 kW) | 85,330 Btu/h (25 kW) |
| Dimensions | ||
| Width | 2030 mm | 2445 mm |
| Depth | 690 mm | 690 mm |
| Height | 1145 mm | 1145 mm |
| Net Weight | 300 kg | 330 kg |
Notes
- * DIAMMS – Direct Ironer Advanced Moisture Management System
- ** RABC – Risk Analysis and Bio-contamination Control
- *** CMIS – Certus Management Information System
- **** Based on 50% residual moisture cotton (190 g/m²) with 100% cylinder use according to ISO 9398
Technical Specifications
| IC63316 | IC63320 | |
|---|---|---|
| Electric Heating – Voltage | 380–415V 3AC 50/60 Hz – 18 kW (32A) | 380–415V 3AC 50/60 Hz – 22.5 kW (40A) |
| Gas Heating – 220–240V 3AC | 0.5 kW (12A) | 0.5 kW (12A) |
| Gas Heating – 380–415V 3AC | 0.5 kW (12A) | 0.5 kW (12A) |
| Gas Connection (DN) | 20 | 20 |
| Exhaust Outlet Diameter | 125 mm | 125 mm |
| Evacuated Air | 426 m³/h | 515 m³/h |
| Airborne Sound Level | 65 dB(A) | 65 dB(A) |
| Heat Emission (% Installed Power Max) | 2% | 2% |
| Net Weight | 300 kg | 330 kg |
| Shipping Volume | 2.7 m³ | 3.2 m³ |
| Width | 2030 mm | 2445 mm |
| Depth | 690 mm | 690 mm |
| Height | 1145 mm | 1145 mm |
| Gas Connection Height | 430 mm | 430 mm |
Connection Points
- 1 – Control panel
- 2 – Electrical connection
- 3 – Exhaust connection
- 4 – Main switch
- 5 – Gas connection
Advanced Options & Controls
The IC63316 can be equipped with advanced electronic control systems designed to improve productivity, monitoring and traceability in professional laundry environments.
- Electronic DIAMMS control system: Automatic speed regulation compatible with RABC hygiene processes, providing traceability of ironing parameters and visual alerts if items are not fully dried.
- CMIS connectivity: Enables monitoring and recording of ironing parameters for operational management.
- Optional nickel-plated cylinder: Improves productivity and provides enhanced finishing quality on cotton items.
- Manual folding arm: Allows a single operator to fold large flatwork items efficiently.
- Feeding belt clutch control: Allows integration with token or payment systems (payment system not included).
More details...
| Model | IC63316 Rotary Ironer |
|---|---|
| Heating Type | Gas or Electric versions available |
| Design | Return-feed commercial rotary ironer |
| Ironing Belts | Heavy-duty Nomex belts rated for temperatures above 220°C |
| Pressure Roll | Nomex padded pressure roll for consistent finishing |
| Cylinder | Stainless steel cylinder to prevent corrosion |
| Safety | Finger guard protection at infeed |
| Crated Weight | 465 kg |
| Delivery Time | Approx. 3–4 weeks |
| Warranty | 2 years parts & labour |
| Extended Service Cover | Optional Essentia service contract by Electrolux |
Downloads / Resources
This machine can be delivered, positioned and commissioned by our trained engineers. Ask about installation when requesting your quote.
Subject to status, eligibility, credit criteria and approval
Is this product right for you?
The IC43316 Rotary Ironer – Gas or Electric Commercial Ironer by Electrolux Professional is a commercial rotary ironer.
It is ideal when you want to finish flat linen considerably faster than hand ironing while achieving a consistent, professional finish.
- Best for:
hotels, care homes, guest houses, restaurants and smaller laundries processing sheets, pillowcases, tablecloths and other flat linen. - Consider a larger model if:
you regularly process large sheets or high volumes of linen and need a wider roller or greater hourly output.
