Compact 500mm Flatbed
Provides professional fusing performance in a smaller footprint, making it suitable for workshops, tailoring rooms and education facilities.

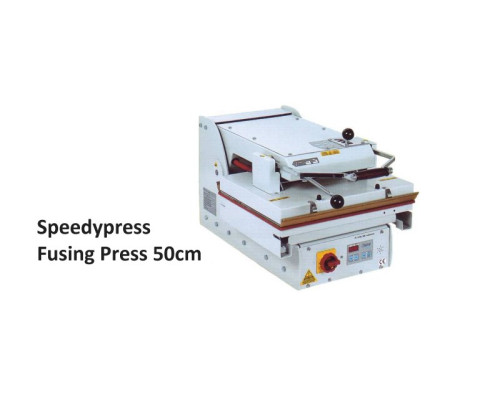

Fusing Press 50cm x 40cm Compact size – Professional Steam Iron Press
Manufactured by:
Speedypress UK
Call sales on 0800 955 0245
Was
£2,495.00
£2,495.00
ex. VAT
£2,994.00
£2,994.00
inc. VAT
£2,495.00
Usually delivered in 1 - 2 days
Free UK delivery
Leasing from per month
UK aftersales support
12-month warranty included
Product Spec. / Description
Speedypress 50cm Manual Flatbed Fusing Press with Steel Stand
This is a compact professional press designed for controlled garment fusing, heat-transfer work and textile finishing. Its 500 x 400mm heated pressing surface is ideal for collars, cuffs, lapels, waistbands, badges, logos and smaller garment components. Digital temperature and timing controls, four pressure settings and a spring-assisted opening mechanism provide accurate, repeatable results without taking up the space required by a larger flatbed press.
500 x 400mm Surface
Up to 230°C
0–90 Second Timer
4 Pressure Settings
1750W Power
Free Steel Stand
Key Benefits
Why Choose the Speedypress 50cm Fusing Press?
Digital Temperature Control
Electronically adjustable from 0°C to 230°C for use with modern fusible interlinings, textiles and compatible heat-transfer materials.
Adjustable Cycle Timer
Pressing time can be set from 0 to 90 seconds, with a clear countdown display and audible notification at the end of the cycle.
Four Pressure Levels
The front-mounted hand adjustment allows pressure to be changed without tools to suit different fabrics and interlinings.
Spring-Assisted Opening
The wide-opening heated top plate gives clear access to the lower bed for easier loading, alignment and removal.
Accidental Closure Protection
A built-in safety mechanism helps prevent the heated top plate from closing unintentionally during garment positioning.
Controlled Fusing
Accurate Control of Heat, Time and Pressure
Successful fusing depends on applying the correct temperature, dwell time and pressure for the selected fabric and interlining.
The Speedypress 50cm provides independent control over all three. Temperature and cycle time are digitally managed, while the manual pressure adjustment provides four selectable levels.
A standby function helps keep the press ready between jobs, while the visible countdown and audible cycle-complete buzzer improve repeatability.
Pressing Surface
500 x 400mm
Maximum Temperature
230°C
Timer Range
0–90 Seconds
Pressure Settings
4 Levels
Power
1750W
Applications
Suitable Fusing and Transfer Work
Collars & Cuffs
Controlled application of fusible interlining to shirts, jackets, uniforms and workwear.
Lapels
Suitable for tailored garment components and smaller structured sections.
Waistband Sections
Useful for shorter waistband components and other narrow garment pieces.
Heat Transfers
Suitable for compatible transfers requiring controlled temperature, pressure and dwell time.
Badges & Logos
Compact working surface suitable for repeat application of smaller transfer designs.
Sample & Short-Run Production
Ideal for varied workshop jobs where a full-size conveyor fusing machine is unnecessary.
Professional Applications
Best Suited To
Clothing Manufacturers
Tailors & Alterations
Garment Workshops
Fashion Colleges
Costume Departments
Textile Studios
Construction & Operation
Professional Features in a Compact Machine
Heavy Steel Framework
The robust steel structure provides a stable platform for repeat fusing and transfer work.
Teflon-Coated Screen
The removable heat-resistant screen helps prevent fabrics and fusible materials sticking to the heated plate.
End-of-Cycle Buzzer
An audible notification alerts the operator when the selected pressing period is complete.
Standby Function
Helps keep the press ready between intermittent jobs and short production runs.
Technical Information
Speedypress 50cm Fusing Press Specifications
| Product Type | Manual flatbed fusing and heat-transfer press |
|---|---|
| Pressing Surface | 500mm x 400mm |
| Work Surface | 50cm x 40cm |
| Heated Plate | Top heated plate with removable Teflon-coated heat-resistant screen |
| Temperature Range | Electronically adjustable from 0°C to 230°C |
| Timer Range | 0–90 seconds |
| Timer Display | Digital countdown display |
| Cycle Notification | Automatic audible buzzer |
| Pressure Adjustment | Four manually selectable pressure levels |
| Maximum Pressure | 0.315 bar/cm² / 325g/cm² / 4.56psi |
| Rated Voltage | 220–230V |
| Power Consumption | 1750W |
| Single-Phase Supply | 20A electrical protection stated by the supplier |
| Three-Phase Supply | 12A electrical protection stated by the supplier |
| Electrical Configuration | Suitable for connection to an appropriate single-phase or three-phase supply, subject to professional verification |
| Top Plate Opening | Wide opening with spring-assisted lift |
| Safety System | Protection against accidental closure of the heated top plate |
| Frame Construction | Heavy-duty steel |
| Net Weight | 69kg |
| Gross Shipping Weight | 89kg |
| Stand | Solid steel stand included free of charge |
Electrical Installation
Professional Electrical Connection Required
This is a professional fusing press and should not be treated as a standard domestic plug-in appliance.
Electrical connection must be completed or verified by a suitably qualified electrician. The installer should confirm the available voltage, phase, cable size, isolation method and protective device before connection.
Always check the rating plate and technical documentation supplied with the exact machine before arranging electrical work.
Buying advice & support
Choose the right equipment
Tell us about your workload, space and installation requirements. We will help you find a suitable solution.
UK commercial specialists
Support with equipment selection, delivery and aftersales for professional ironing and laundry businesses.
Why choose TIECO?See our customers projects
Explore equipment supplied to hotels, laundries, garment businesses and other commercial customers.
Read customer case studiesReviews (0)
Spread the cost · Shire Leasing Leasing and monthly payment options
Spread the cost with leasing. Bespoke quotes are available for 2, 3 or 5 years.
From per month ex. VAT
5-year estimate. Subject to status, eligibility, credit criteria and approval.
Frequency Asked Questions (FAQs)
Answers to questions about this product...
Yes, it is intended for professional tailoring rooms, garment workshops, clothing manufacturers, fashion colleges and costume departments handling varied component work. The 500 x 400mm bed suits short runs and repeat jobs such as fusing garment parts or applying transfers, without the footprint of a large conveyor or wide flatbed fusing machine.
The pressing area is well suited to collars, cuffs, lapels, shorter waistband sections, badges, logos and other smaller structured garment components. It can also be used for compatible heat-transfer materials. For long waistbands, large textile panels or processing several components in one cycle, a 90cm, 110cm or 125cm press may be more practical.
Temperature is electronically adjustable from 0°C to 230°C, while the digital timer can be set from 0 to 90 seconds. Four manually selectable pressure levels allow the operator to match the press setting to the fabric and fusible interlining. This independent control of heat, time and pressure helps achieve more repeatable fusing results across different materials.
This professional equipment must be connected or checked by a suitably qualified electrician rather than treated as a domestic plug-in appliance. It is rated at 220–230V and 1750W, with supplier-stated protection requirements of 20A for single-phase or 12A for three-phase supply. The installer should verify the rating plate, available supply, cable size, isolation and protective device.
The top heated plate has a wide, spring-assisted opening, giving the operator clear access for positioning and removing garment pieces. A safety mechanism helps prevent accidental closure while materials are being aligned. The digital countdown display and end-of-cycle buzzer also make it easier to monitor each pressing cycle, while the removable Teflon-coated screen helps reduce sticking to the heated plate.
