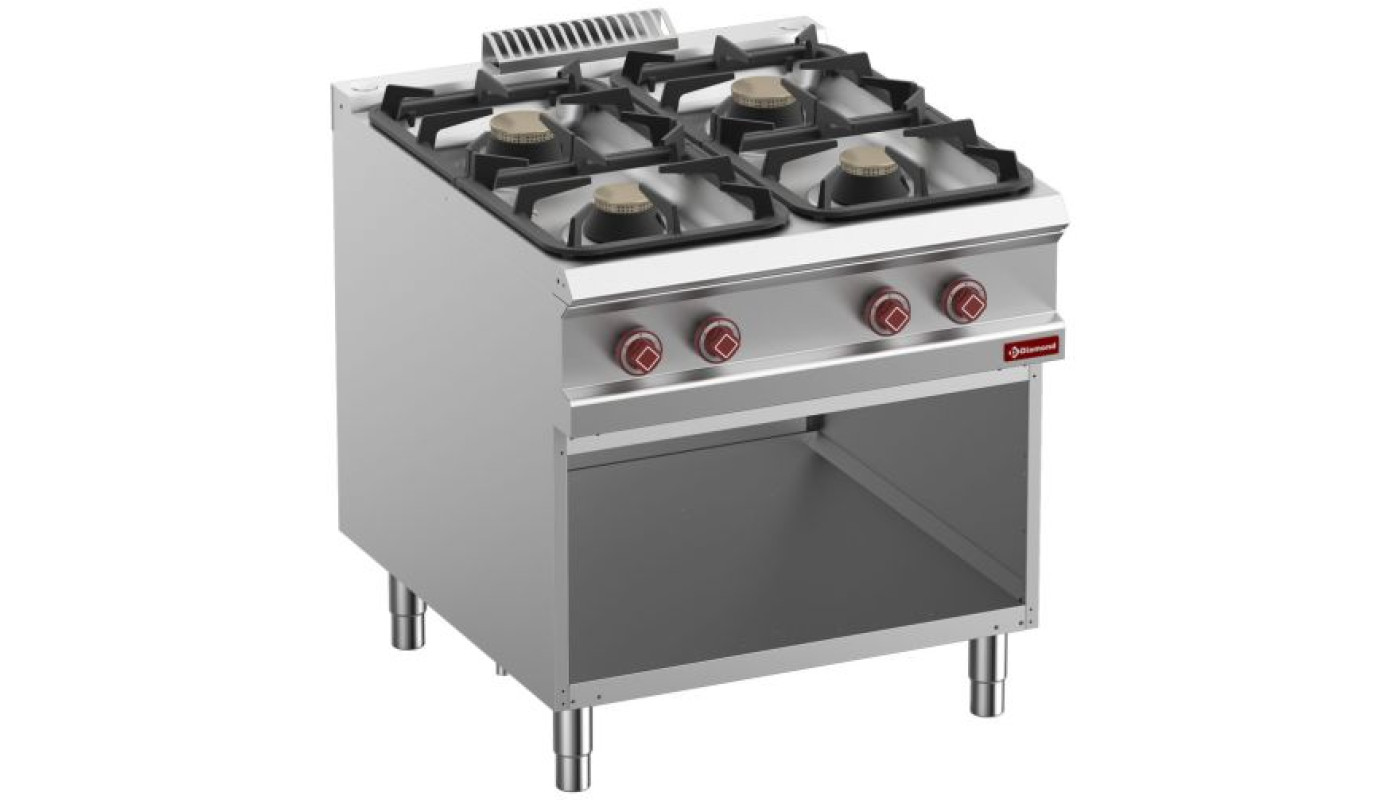

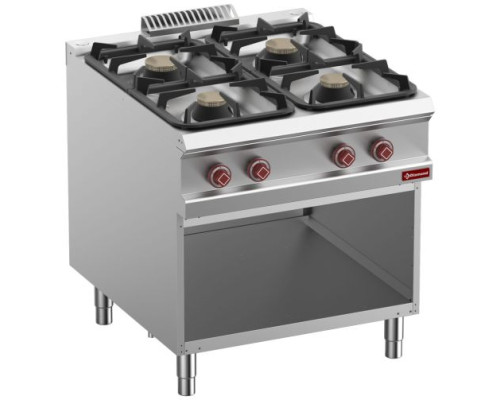

Diamond G9/4BA8-N 4 Burner Gas Range On Open Cupboard – Commercial Cooking Equipment
The Diamond G9-4BA8-N is a robust and versatile gas hob unit designed for heavy-duty commercial kitchens. With four high-efficiency burners and a built-in open cupboard (GN 2/1), it delivers both powerful cooking performance and valuable storage space. Constructed entirely in AISI 304 stainless steel, it's built for hygiene, longevity, and easy maintenance.
Key Features:
- 4 high-efficiency burners: 2 x 7 kW and 2 x 11 kW
- Open cupboard (GN 2/1) with internal dimensions: 760x740xH360 mm
- Constructed from AISI 304 stainless steel with adjustable feet
- Stamped 20/10 mm waterproof top with integrated liquid collection bowl
- Rear chimney in AISI 304 stainless steel for ventilation
- Cast iron burners with waterproof treatment and brass crowns for maximum efficiency
- Burner regulation: 1.5 to 7 kW and 2 to 11 kW via gas valve
- Pilot ignition and thermocouple safety system for each burner
- Enamelled cast iron grates (390x380 mm) – dishwasher safe
- IPX5 waterproof rating – suitable for intensive kitchen environments
- Frontal access for easy servicing and maintenance
Specifications:
| SKU | G9-4BA8-N |
|---|---|
| Warranty | 1 Year Parts Only |
| Manufacturer | Diamond |
| Dimensions (mm) | W800 x D900 x H920 |
| Internal Dimensions (mm) | W760 x D740 x H360 |
| Number of Burners | 4 (2 x 7 kW, 2 x 11 kW) |
| Material | Stainless Steel AISI 304 |
| Waterproof Rating | IPX5 |
| Grate Dimensions | 390 x 380 mm |
| Colour | Stainless Steel |
Aftersales support
Subject to status, eligibility, credit criteria and approval
Is this product right for you?
The Diamond G9/4BA8-N 4 Burner Gas Range On Open Cupboard – Commercial Cooking Equipment by Diamond is a professional product.
It is ideal when you need equipment designed to cope with a commercial working environment rather than occasional domestic use.
- Best for:
businesses looking for dependable equipment for regular professional use. - Consider a larger model if:
your workload is particularly high or the equipment will be used continuously throughout the working day.
