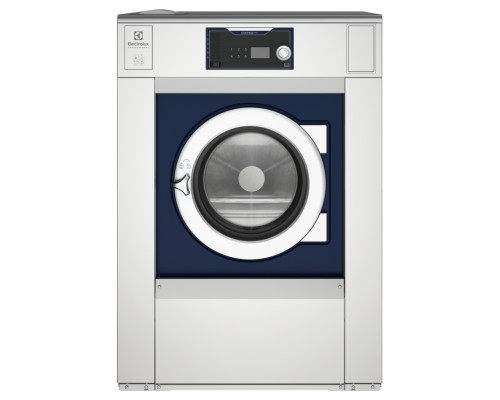

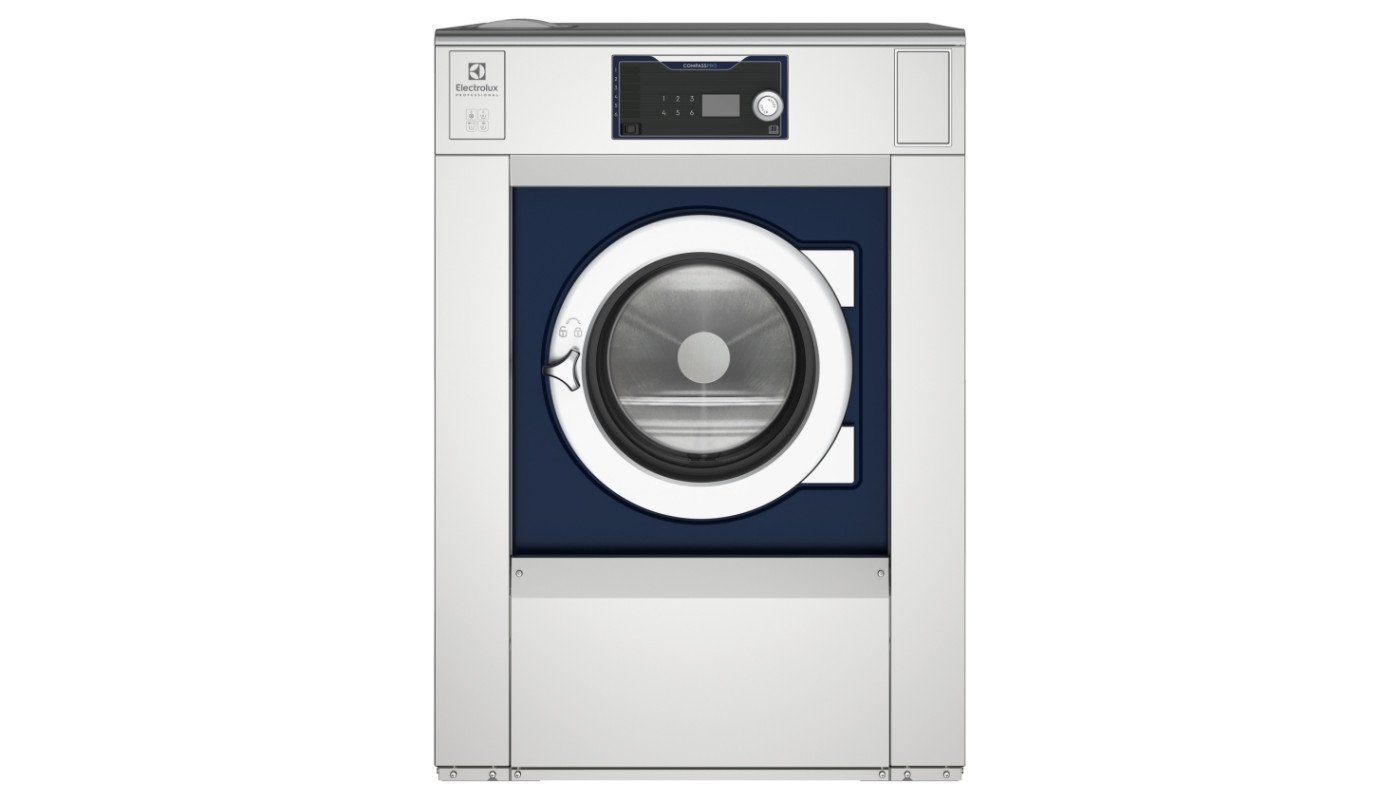

Electrolux Professional WH6-33 33kg Washer Extractor, Compass Pro General Eco, Stainless Steel
Manufactured by:
Electrolux Professional
Call sales on 0800 955 0245
POA
Price on application
Usually delivered in 2 - 5 days
Free UK delivery
We will confirm availability, delivery and pricing before taking payment.
Leasing from per month
UK aftersales support
Essentia service options
Product Spec. / Description
33kg commercial washing with Compass Pro General Eco
The Electrolux Professional WH6-33 is an 33kg high-spin washer extractor with a 300-litre drum and 450 G extraction. This configuration combines Compass Pro controls, the 6G01 General Eco programme package and stainless steel front and side panels.
Designed for a professional laundry setup, it offers hot and cold water connections, manual detergent dosing and signals for automatic liquid dosing. The 19.1kW electric heater and large drum make this a machine to plan into a properly equipped commercial laundry. The supplied electrical options are 380–400V three phase with neutral or 220–230V three phase without neutral.
Configured for a professional commercial laundry workflow
High-spin moisture extraction
The 450 G extraction force removes water from suitable laundry before it moves to drying. Effective extraction helps prepare loads for the next stage of your laundry process.
Compass Pro programme control
This machine is supplied with Compass Pro and the 6G01 General Eco programme package. Assess this configuration against your textile mix, daily workload and required wash programmes.
Stainless steel front and sides
Stainless steel exterior panels provide a practical finish for a working laundry. This version includes a stop button and supply disconnector.
Manual and automatic dosing options
Manual dosing is complemented by five liquid dosing signals for external detergent pumps, allowing a suitable dosing system to be integrated.
Hot and cold water connections
Separate water inlets let you connect the machine to suitable hot and cold supplies. Check your available water services and intended programmes when planning installation.
Specified for system integration
A second I/O board, water-operated drain valve and supply disconnector form part of this configuration. Provide the exact PNC to your installer and detergent dosing supplier.
Match the electrical configuration to your premises
The supplied specification lists 380–400V three phase with neutral (3N) or 220–230V three phase without neutral (3), both at 50Hz. Confirm the correct arrangement for PNC 9868130395 with your installer before ordering.
Technical specifications
| Manufacturer | Electrolux Professional |
|---|---|
| Model | WH6-33 |
| Product code | 1LZRZ4 |
| PNC | 9868130395 |
| Rated capacity | 33kg |
| Drum volume | 300 litres |
| Extraction force | 450 G |
| Control system | Compass Pro |
| Programme package | 6G01 General Eco |
| Heating | Electric, 19.1kW heater |
| Total electrical load* | 19.6kW |
| Electrical supply | 380–400V, 50Hz, three phase with neutral (3N); or 220–230V, 50Hz, three phase without neutral (3) |
| Water connections | Cold and hot water |
| Dosing | Manual dosing and automatic dosing interface with 5 liquid signals |
| I/O configuration | Second I/O board |
| Drainage | Water-operated drain valve, normally open |
| Stop button | Included in supplied configuration |
| Supply disconnector | Included in supplied configuration |
| Front / sides | Stainless steel / Stainless steel |
| Dimensions (W × D × H) | 1,020 × 1,134 × 1,446mm |
| Product weight | 560kg |
| Country of origin | Sweden |
| Commodity code | 84502000 |
| Supplied language codes | AR, CZ, DE, DK, EN, ES, FI, FR, GR, IT, NL, NO, PL, PT, RU, TR |
*Based on the supplied configuration data. Electrical power in kW is separate from energy used per wash in kWh. Confirm final connection requirements against the machine rating plate and installation documents.
Installation and commissioning
Plan for a suitable three-phase electrical connection, hot and cold water services and drainage appropriate to the water-operated valve. Check floor suitability, delivery access and the manufacturer's installation clearances before positioning the machine.
Arrange dosing integration around this exact configuration. Five liquid signals describe the dosing interface; they do not confirm that five pumps are included. Confirm all accessories and commissioning work in your quotation.
