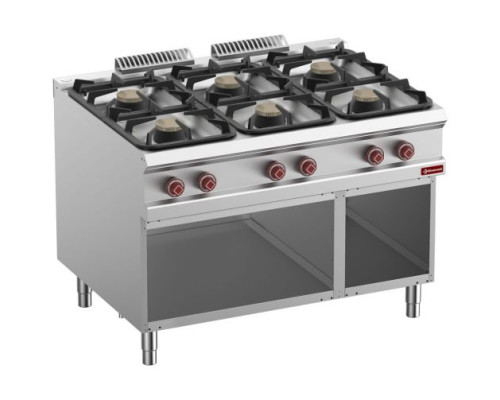

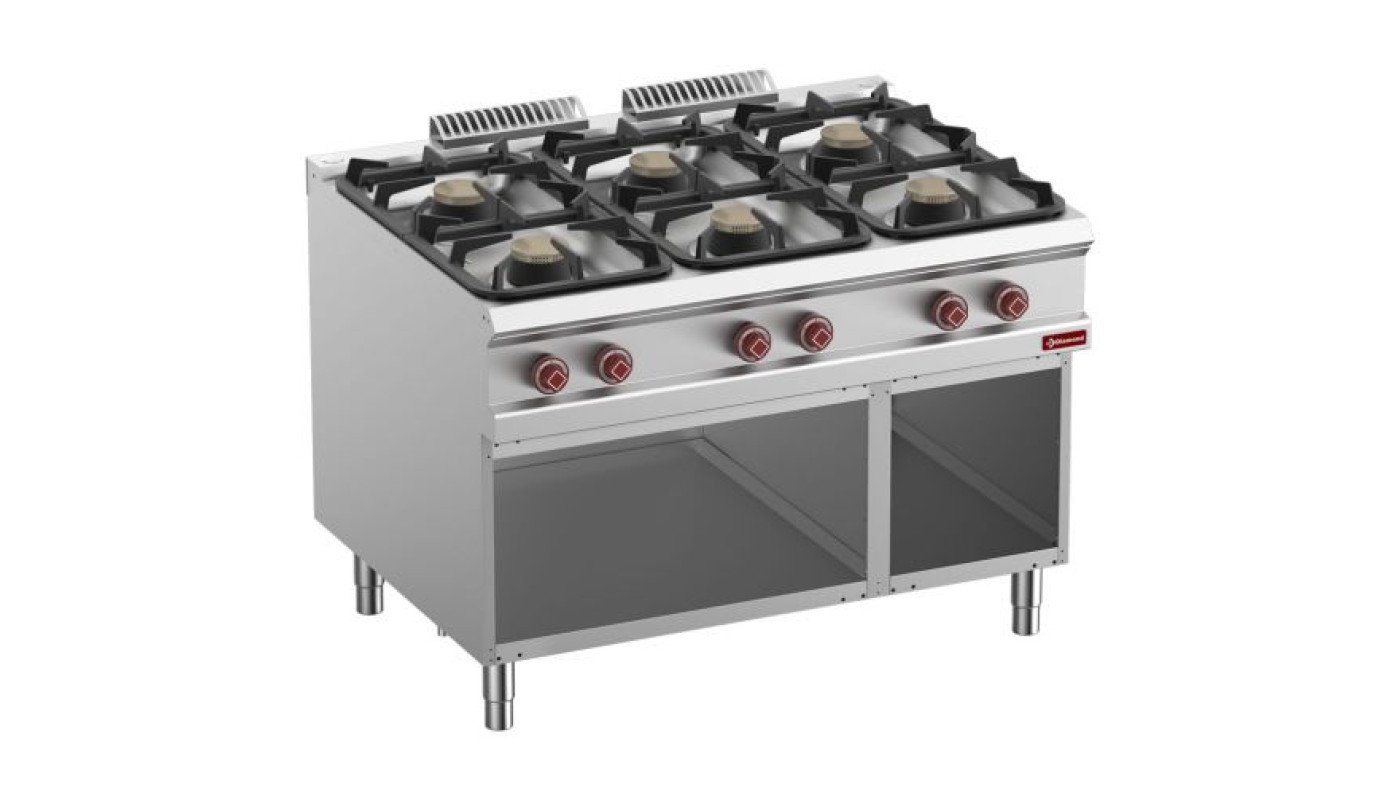

Diamond G9/6BA12-N 6 Burner Gas Range On Open Cupboard – Commercial Cooking Equipment
The Diamond G9-6BA12-N gas range is a powerful, high-capacity cooking solution for busy commercial kitchens. Featuring six high-efficiency burners and an open GN cupboard for convenient storage, it combines flexibility, rugged stainless steel construction, and easy maintenance. This IPX5-rated unit is designed to meet the demands of fast-paced professional environments.
Key Features:
- 6 gas burners: 3 x 7 kW and 3 x 11 kW for maximum flexibility and high efficiency
- Open GN-compatible cupboard: fits GN 2/1 + GN 1/1 containers (1160 x 740 x 360 mm)
- Made entirely from AISI 304 stainless steel, including stamped waterproof top (20/10 mm)
- Cast iron burners with waterproof treatment and brass crowns
- Burner output adjustable from 1.5–7 kW and 2–11 kW via gas valves
- Pilot ignition and safety via thermocouple for each burner
- Enamelled cast iron grids (390 x 380 mm), dishwasher safe
- Rear chimney and adjustable stainless steel feet
- Front-facing burner access for simplified maintenance
- IPX5 waterproof rating for enhanced hygiene and durability
Specifications:
| SKU | G9-6BA12-N |
|---|---|
| Warranty | 1 Year Parts Only |
| Manufacturer | Diamond |
| Width (mm) | 1200 |
| Depth (mm) | 900 |
| Height (mm) | 920 |
| Dimensions (mm) | W1200 x D900 x H920 |
| Internal Cupboard Dimensions (mm) | W1160 x D740 x H360 |
| Burner Configuration | 3 x 7 kW + 3 x 11 kW |
| Burner Range | 1.5–7 kW & 2–11 kW (adjustable) |
| Grates | Enamelled Cast Iron (390 x 380 mm) |
| Colour | Stainless Steel |
| Compliance | Manufactured to CE Standards, IPX5 Rated |
