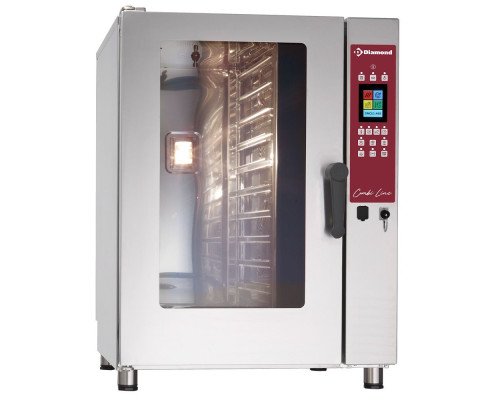

Diamond DFV-1011/PTS Touch Screen Electric Steam Convection Oven, 10 x 1/1 GN
The Diamond DFV-1011-PTS is a high-performance compact combi oven, designed with an intuitive touchscreen control panel and a built-in Auto-Cleaning system. Its space-saving footprint makes it ideal for kitchens where performance cannot be compromised by size.
Equipped with direct steam injection via nebulization and convection heating through armoured stainless steel resistors, this oven ensures even cooking results. It features a “lengthwise” GN loading design compatible with GN 1/3, 1/2, 2/3, and 1/1 trays. Built to last in AISI 304 stainless steel with a robust ergonomic handle, hinged inner glass, and easy-access maintenance panel.
The oven includes a condensate collection tray, steam condenser, magnetic door switch, and autoreverse turbine for optimal airflow. Includes 2 GN 1/1 grids as standard and is CE certified.
Key Features:
- Touchscreen control panel
- Integrated Auto-Cleaning system with fluid dosing pumps
- Compact footprint — fits small kitchens
- Lengthwise GN loading (1/3, 1/2, 2/3, 1/1)
- Supplied with 2 x GN 1/1 grids
- Direct steam via nebulization
- Autoreverse turbine for even airflow
- Hinged turbine deflector — easy maintenance
- Halogen lighting and magnetic door switch
- Double thermal-glass door with ergonomic athermic handle
- Steam condenser & smoke release valve
- Made entirely from AISI 304 stainless steel
- Manufactured to current CE safety standards
| SKU | DFV-1011-PTS |
|---|---|
| Warranty | 1 Year Parts Only |
| Extra Service Category | POA |
| Manufacturer | Diamond |
| Width (mm) | 710 |
| Depth (mm) | 770 |
| Height (mm) | 940 |
| Dimensions (mm) | W710 x D770 x H940 |
| Colour | Stainless Steel |
| Gastronorm Shelf/Pan Size | 1/1 GN |
| Number of Shelves | 2 |
| GN Compatibility | 1/3, 1/2, 2/3, 1/1 |
| Depth Loading | Yes, 67mm spacing |
| Interior Material | AISI 304 Stainless Steel |
| Steam System | Direct steam via nebulization |
| Heating Type | Convection with stainless steel resistors |
| Fan | Autoreverse turbine |
| Lighting | Halogen |
| Door | Double thermal glass with hinged inner glass |
| Cleaning System | Auto-cleaning with dosing pumps |
| Drainage | Condensate tray and steam condenser |
| Certifications | CE compliant |
